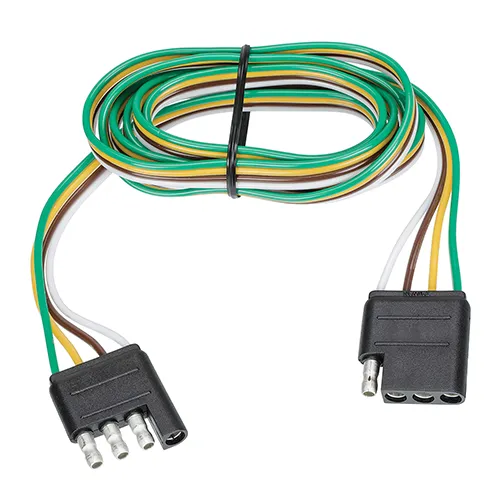

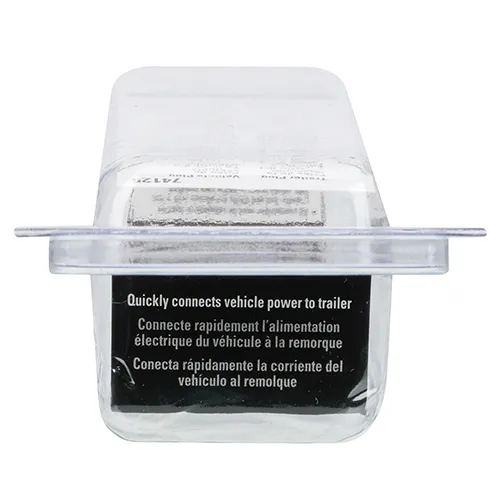

PART NO: 74125
The REESE Towpower 4-way flat complete connector loop is designed to handle basic lighting connections on small trailers. It features 18 gauge bonded wire and conforms to SAE spec J1128 which will allow it to fit most 4-flat connectors on the market. The loop style connector can be used as an extension or cut and spliced to meet your needs when repairing existing connectors on either the vehicle or the trailer.
- Comes with both car and trailer connectors
- Features 18 gauge bonded wire
- Ground wire runs full length of assembly
- Tin plated terminals
- Bolded wire for a clean neat appearance
- Rated for 7.5 amps per circuit
- Ground wire runs full length of assembly
- Conforms to SAE spec. J1128
SPECIFICATIONS
| BRAND: | REESE TOWPOWER |
| PART NUMBER: | 74125 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| UPC: | 016118741254 |
| DIMENSIONS: | 1.99" X 2.9" X 6.9" (SHIPPING) |
| WEIGHT: | 0.2 LBS |

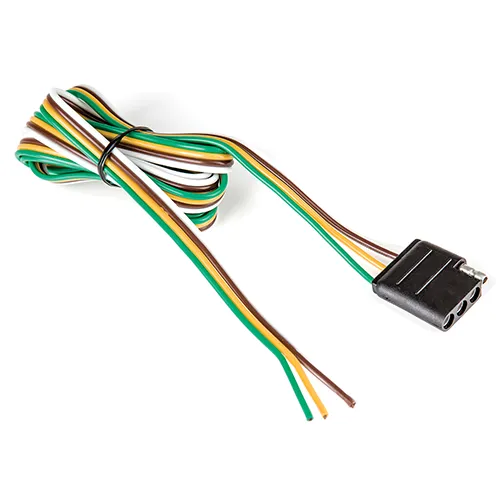

PART NO: 74123
REESE Towpower 4-way flat, vehicle end connector allows for the electrical connection between the towing vehicle and the towed trailer. The simple 4-wire connection activates the trailer's stop, turn and tail-lights.
- Compatible with most commonly used trailer plugs
- 60 In. vehicle connector
- Used when towing light duty trailers with basic wiring
- Tin plated terminals
- Bolded wire for a clean neat appearance.
- Rated for 7.5 amps per circuit
- Ground wire runs full length of assembly
- Conforms to SAE spec. J1128
SPECIFICATIONS
| BRAND: | REESE TOWPOWER |
| PART NUMBER: | 74123 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| UPC: | 016118741230 |
| DIMENSIONS: | 2" X 2.9" X 7" (SHIPPING) |
| WEIGHT: | 0.25 LBS |
